OMAL DIN43650A型电磁阀连接器

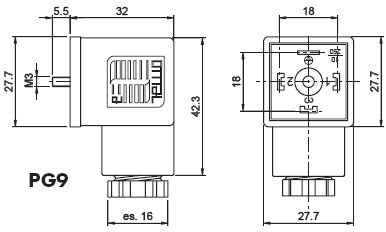

DIN43650A标准接线盒产品尺寸图

产目参数：2+PE 3+PE 出线口：PG7 PG9 PG11 1/2NPT 电压：24VDC 48VDC 110VAC 220VAC 最大电流：10A 针距：18mm 最大导线截面:1.5平方

绝缘类型：C-VDE0100 工作温度：-40°C/ +125°C

OMAL DIN43650A接接盒常用型号：

A1B0912A A1B0913A A1G0912A A1G0913A A2B0912A A2B0913A A2G0912A A2G0913A 24VDC A1T0912GR 48VDC A1T0912HR

110VAC A1T0912JR 250VAC A1T0912KR A1T0912MR A1T0912NR A1T0912BR A1T0912CR A1T0912L

KA1T0912GR KA1T0912HR KA1T0912JR KA1T0912KR KA1T0912MR KA1T0912NR KA1T0912BR KA1T0912CR KA1T0912QR KA1T0912RR

A1B1112A A1B1113A A1G1112A A1G1113A A2B1112A A2B1113A A2G1112A A2G1113A

A1T1112GR A1T1112HR A1T1112JR A1T1112KR A1T1112MR A1T1112NR A1T1112BR A1T1112CR A1T1112L

KA1B1112GR KA1T1112HR KA1T1112JR KA1T1112KR KA1T1112MR KA1T1112NR KA1T1112BR KA1T1112CR KA1B1112P

A1B1212A A1B1213A A1G1212A A1G1213A A1T1212GR A1T1212HR A1T1212JR A1T1212KR A1T1212MR A1T1212NR

A1T1212BR A1T1212CR A1T1212L A2B0918A A2B0919A A2G0918A A2G0919A

KA1T1212GR KA1T1212HR KA1T1212JR KA1T1212KR KA1T1212MR KA1T1212NR KA1T1212BR KA1T1212CR KA1T1212P
